    How to Start a Fire with a Bow Drill

    This post may contain affiliate links.* As an Amazon Associate I earn from qualifying purchases. Click here to read our affiliate policy.
    Print Friendly, PDF & Email

    Estimated reading time: 7 minutes

    How to Start a Fire with a Bow Drill

    In the realm of survival skills, mastering the art of starting a fire using a bow drill is a throwback to our ancestral roots. This rudimentary tool, assembled with nothing more than a string, a stick, and a piece of wood, can generate sufficient heat to spark a life-saving flame.

     As we become more entangled in a digital world, understanding this primitive technique underscores the power of resourcefulness and adaptability. This guide will enlighten you about the step-by-step process of using a bow drill, offering a look into the realm of survivalism and self-reliance.

    Want to save this post for later? Click Here to Pin It On Pinterest!

    What You'll Need

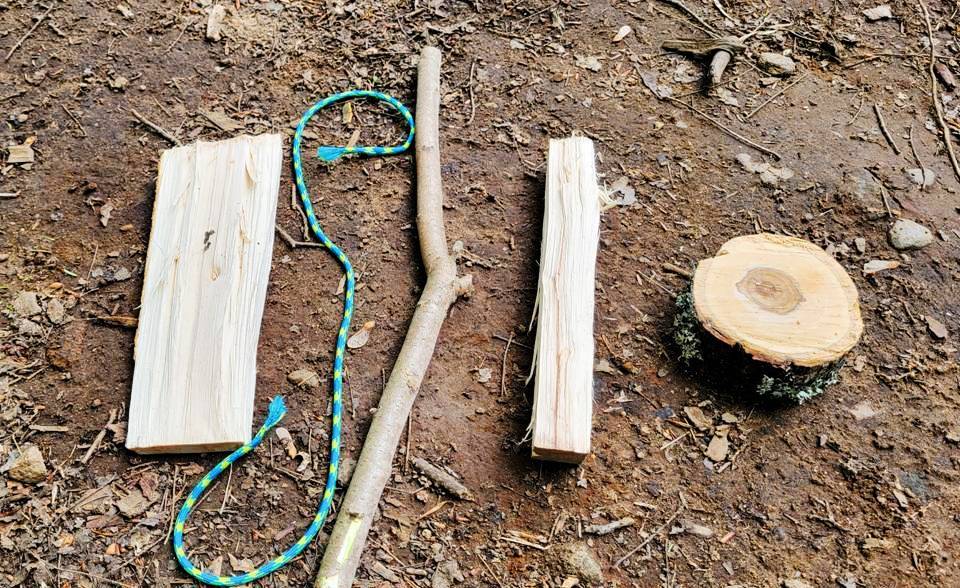

    BOW DRILL PARTS

    Since most people will be making a bowdrill as a last resort method, minimalism is the essence when crafting a bow drill. This is largely due to the amount of work required to get a smoldering ember started. Keeping the design simple and sturdy will give you the ability to apply the force needed to be successful.

    Tools

    Begin your bow drill assembly with these basic elements: a bow, a drill, a fire board, and a bearing block. These items might not appear magical, but when used correctly together, they can create the vital spark you want.

    Here are the four main components for the bowdrill:

    • Bow: A slightly curved branch about the length of your arm.
    • Drill: A straight, dry stick about the thickness of your thumb.
    • Fire Board/Hearth Board: A flat piece of wood.
    • Bearing Block: A small, flat stone or another piece of wood.

    The beauty of this tool lies not only in its simplicity but also in its adaptability. You can substitute or modify components as needed, based on what's available around you.

    Choosing the Right Materials

    Selecting the right materials is critical for the success of your bow drill. When choosing wood, consider its hardness and dryness. Softwoods such as cedar, pine, or willow are ideal for the fire board and drill.

    They generate more friction and are easier to shape, facilitating the formation of an ember. One of the most important things to remember is to ensure the wood is dry, as moisture will hinder the entire process.

    Crafting the Bow Drill: Step-by-Step Guide

    Preparing the bowdrill itself does require some time, you want to make sure you create the components properly so that you have a high chance of it working.

    1. Create the Bow: Find a branch as long as your arm and slightly curved. Take a knife and carve a notch on each end of the bow. Attach a sturdy string, like a shoelace or paracord, to both ends, creating tension. Make sure the string is taut but has enough give to wrap around the drill.

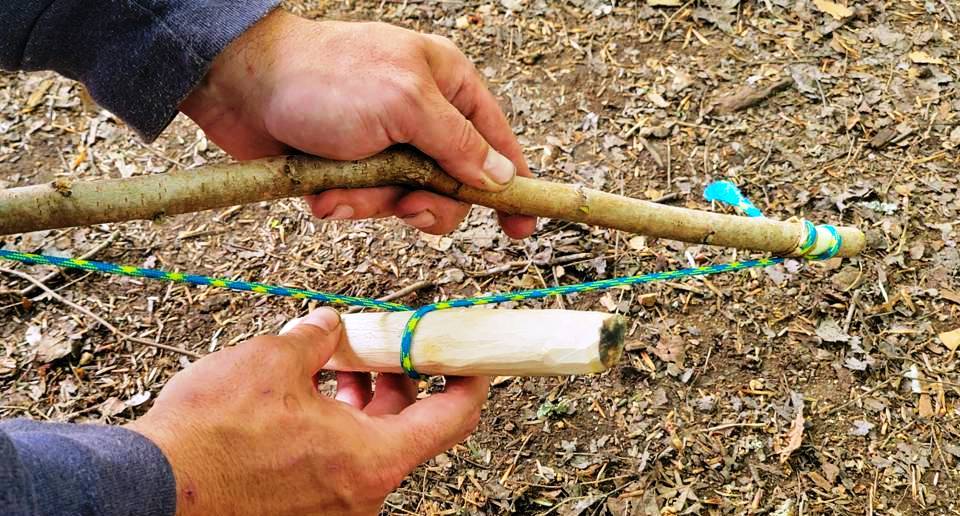

    BOW AND DRILL
    1. Prepare the Drill: Choose a straight, dry stick, about as thick as your thumb.

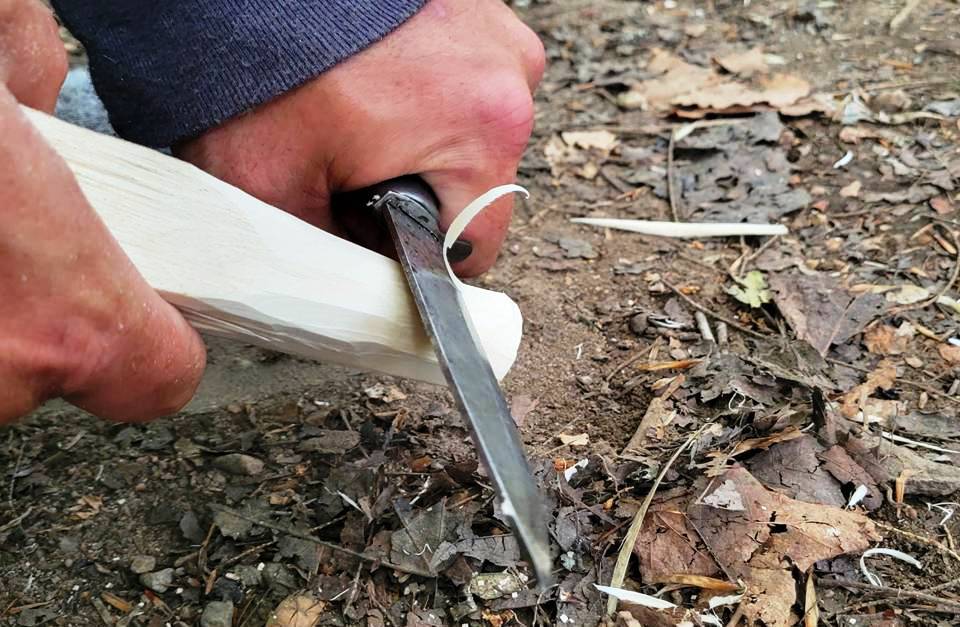

    CARVING STICK

    The stick should be longer than the width of your hand and smooth to reduce friction on the string.

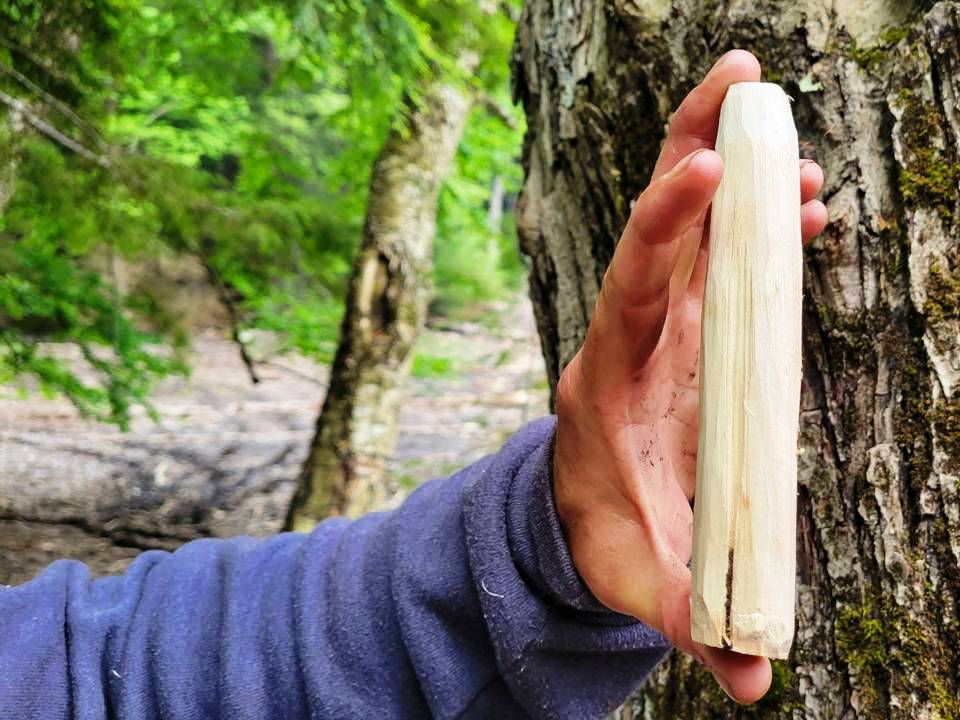

    DRILL STICK IN HAND
    1. Craft the Hearth Board: Look for a flat piece of softwood like cedar, pine, or willow. A good material option is to use the same wood as the drill as they will naturally create friction. It should be dry and approximately half an inch thick. Carve a small, shallow hole on one side of the board where the drill will spin. Use your knife and cut a “V” notch at the edge of the indent on your hearth board.

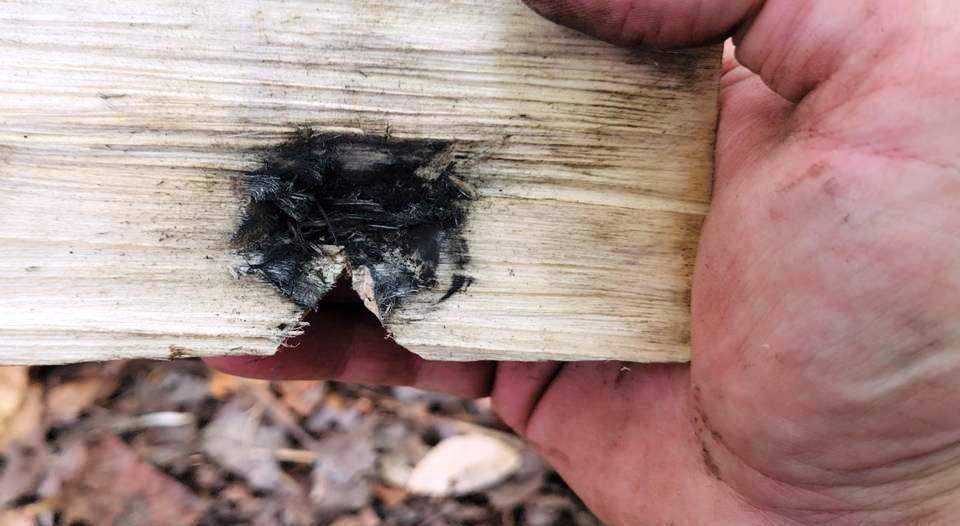

    NOTCH IN WOOD
    1. Find a Bearing Block: Look for a flat stone or a hardwood piece. Carve a small depression in it where the top end of the drill will sit. This keeps the drill steady while spinning.
    2. Assemble the Bow Drill: Wrap the bow's string once around the drill. Position the drill into the hole on the hearth board. Place the bearing block on top of the drill, holding it steady.

    With all of your components ready to go it's time to start the ember creating process. Even experienced bushcrafters can spend some time trying to get the right amount of speed and pressure needed for ignition.

    Starting the Fire

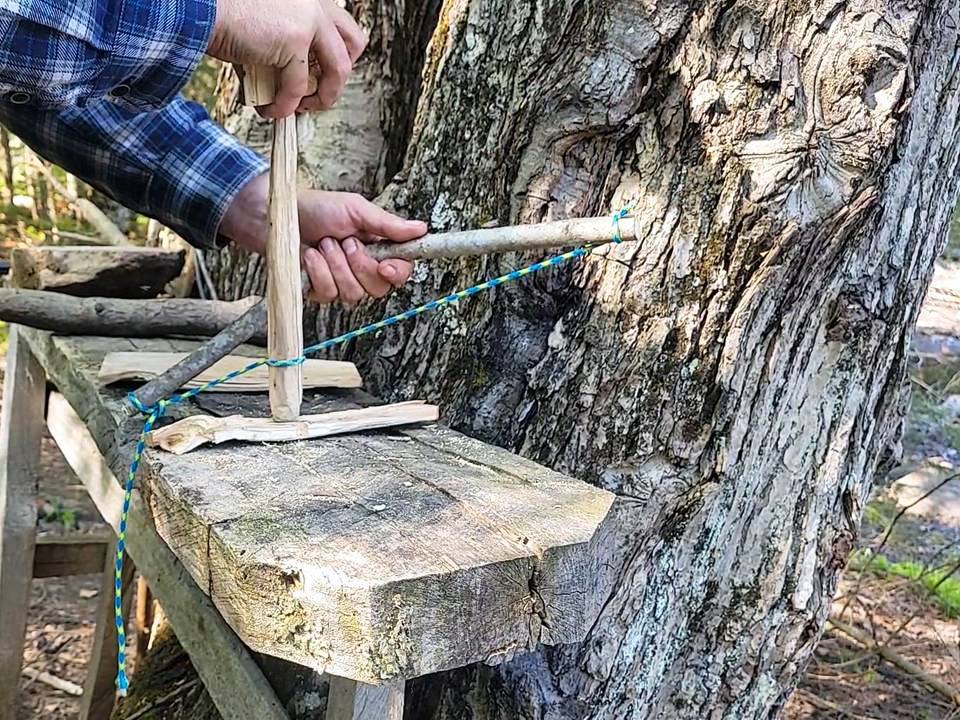

    USING BOW DRILL

    To ignite a fire using a bow drill, initiate by applying moderate pressure on the drill through the bearing block. Begin with slow back-and-forth strokes and gradually increase speed to build up heat. As smoke appears, maintain a steady rhythm and avoid rushing. You will be successful if you maintain the balance between speed and pressure.

    For easier friction and heat build-up, ensure the drill's tip is sharp and the hearth board's hole is smooth. Sprinkle dry dust from the drill into the notch to catch the ember. Patience is the key here.You don’t want to snuff the ember out at this stage.

    Once you've produced an ember, carefully transfer it to a tinder bundle, such as dried grass or leaves. For the transfer, use a small piece of bark or leaf to gently lift the ember without damaging it.

    Position the ember in the center of the bundle and blow gently yet steadily to ignite the tinder, fueling the ember into a flame.

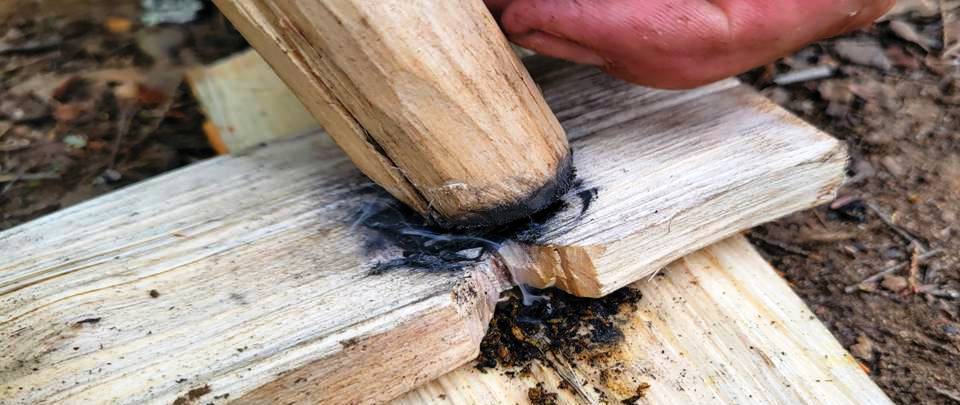

    TIP OF DRILL

    Final Thoughts

    Mastering this skill not only grants you warmth and cooking abilities in the wild but also builds your confidence to conquer any challenge nature throws your way. Consider yourself in the Bushcraft Hall of Fame when you're able to create fire from nothing.
